Description

FEATURES:

• Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7800+(OC) MHz
• Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• Socket: AMD Socket AM5
• CPU: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
• Chipset: AMD X670
• DDR5 Memory: 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E x16: 3
• PCI-E x1: 1
• SATA 6G: 4
• M.2 Slot: 4
• RAID: 0/1/10
• LAN: 1 x Realtek^® RTL8125BG 2.5Gbps LAN
• Wi-Fi and Bluetooth: AMD Wi-Fi 6E

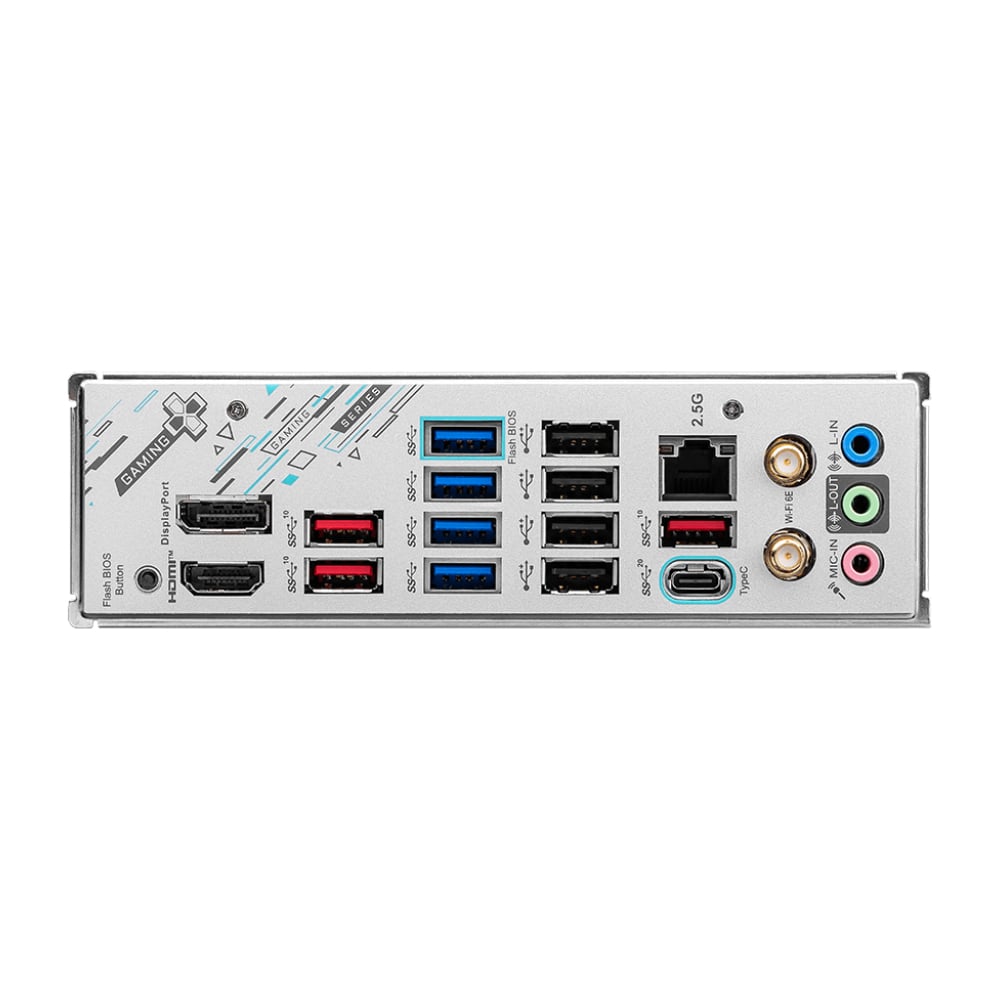

• USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
• USB 3.2 ports (Rear): 1(Gen 2×2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4 (Type-A)
• Audio ports (Rear): Realtek® ALC897 Codec
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit

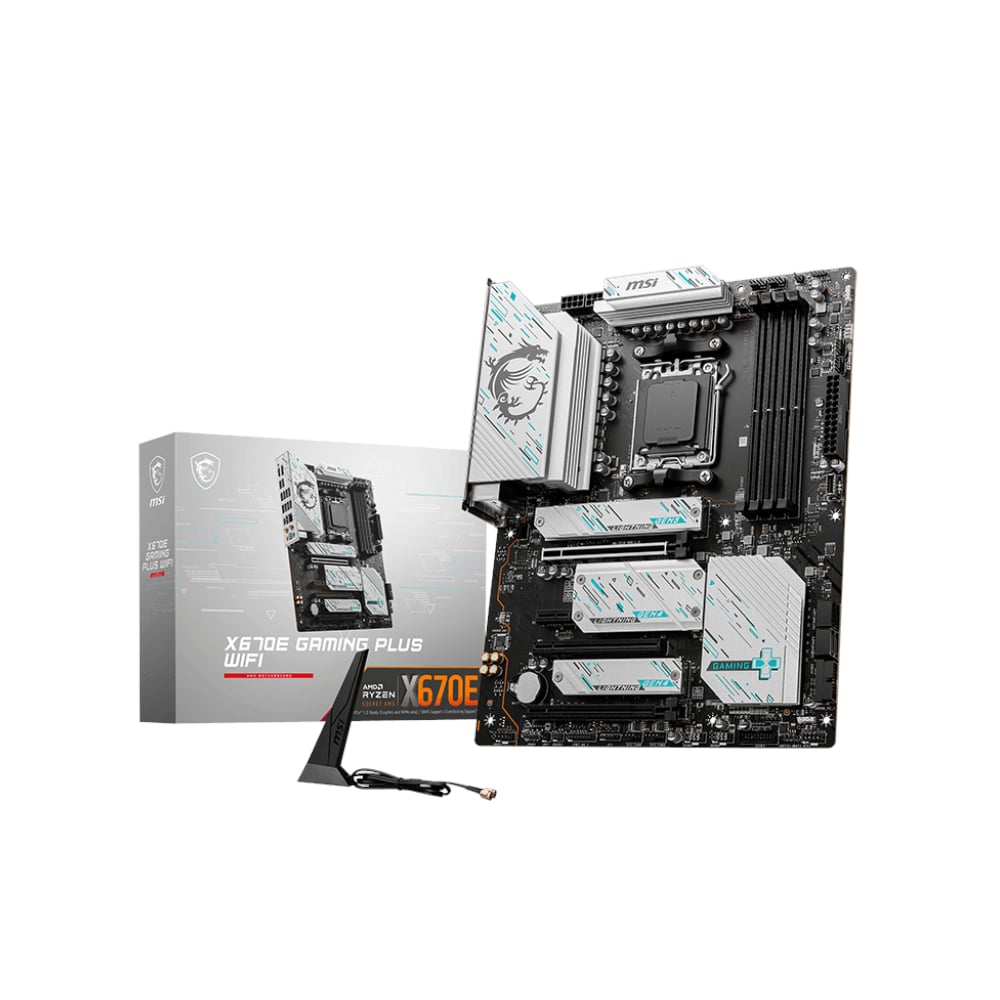

WHAT’S IN THE BOX:

• MSI MAG X670E Gaming Plus Wi-Fi ATX Motherboard – Black x1
• Wi-Fi Antenna x1
• SATA cables x2
• M.2 Standoff Screws/Sets x3
• M.2 Plate Screw x1
• Quick Install Guide x1
