Description

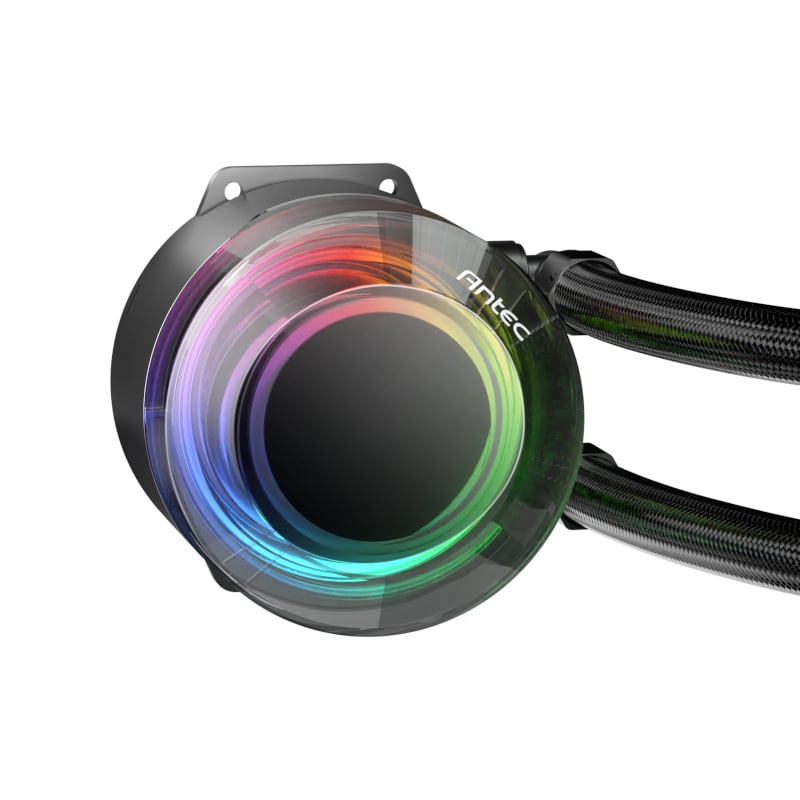

A very efficient cooling pump at the heart of this cooler provides optimal heat dissipation and the EPDM high-density tube increases durability and reduces liquid loss, resulting in constant performance. The addition of 13 massive fins improves heat dispersion and keeps your system cool.

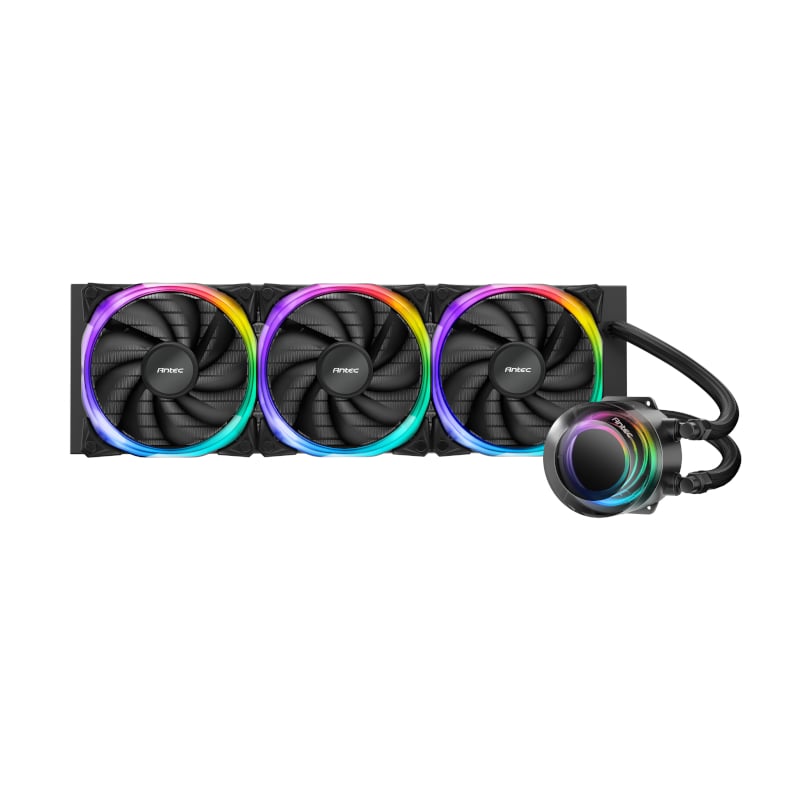

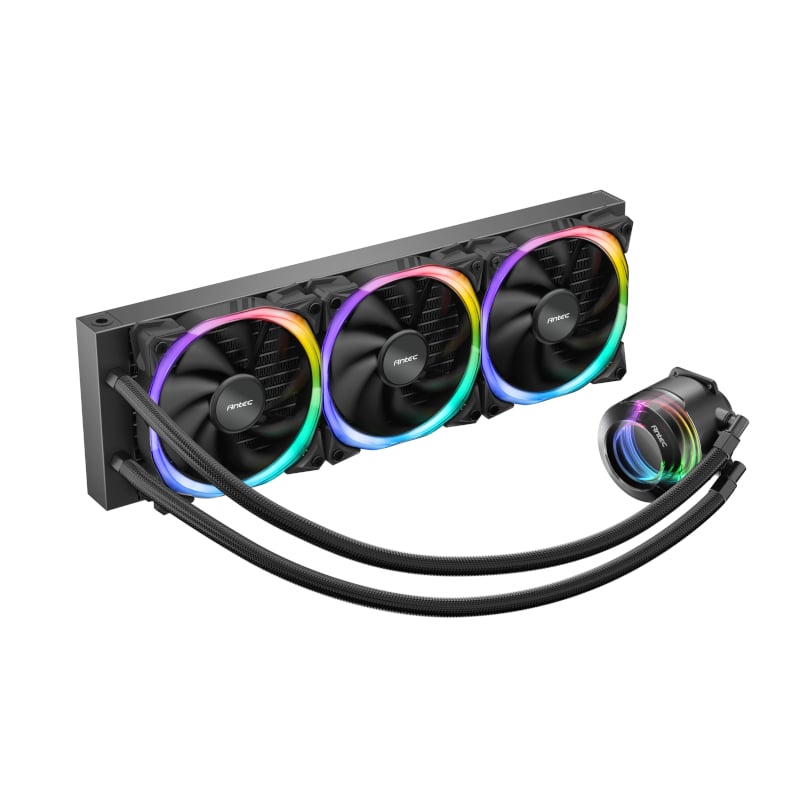

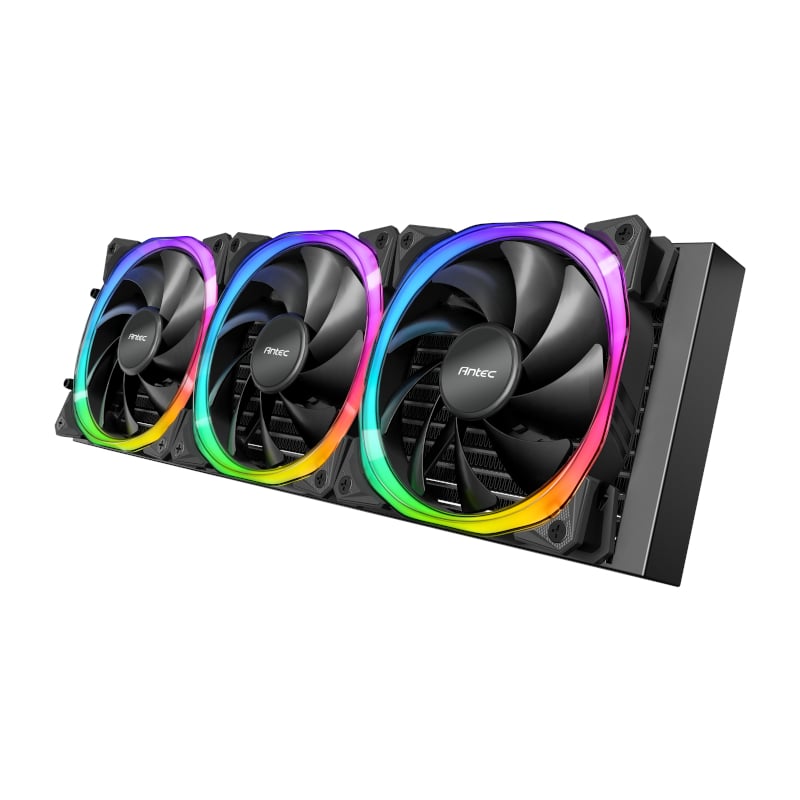

The Vortex 360 ARGB is equipped with the Antec Fusion PWM ARGB Fan, which is distinguished by a unique multilateral-shaped lighting frame outfitted with 16 LEDs. Several LEDs work together to create dazzling lighting effects, while the fan’s powerful cooling capability ensures that your CPU is kept at an optimal temperature.

The kit contains an ARGB controller that effortlessly syncs with your motherboard, taking personalization to the next level. This allows you to customise each individual LED by changing the colours and effects to your desire. Enjoy the Antec VORTEX 360 ARGB’s power and enjoy top-tier cooling performance mixed with fascinating lighting aesthetics, bringing your PC experience to new heights.

FEATURES:

• Highly Efficient Cooling Pump
• Suspended Spiral Pump Head Design
• EPDM High-Density Tubing
• Antec Fusion PWM ARGB Fan
• 2800±10% RPM Fan Speed
• Included ARGB Controller Working in Sync with the Motherboard

SPECIFICATIONS:

• Intel Socket Compatibility: LGA 115x/1200/20XX/1700
• AMD Socket Compatibility: AM3/AM4/TR4
• Radiator:
• Radiator Dimensions: 39.7 x 12 x 2.7 cm
• Radiator Material: Aluminum
• Pump:
• Dimensions: ￠67 x 48.5 mm
• Rating Voltage: DC 12 V
• Minimum Startup Voltage: ≥ 5.0 V
• Fan Speed: 2800±10% RPM
• Rated Current: 0.25±20% A
• Consumed Power: 3.0 W
• Flow rate: ≥ 1300 mL/min
• Water Pressure: 1.4M
• Operation Temperature: -10°C ~ +60°C
• Noise Level: ≤ 28 dB(A)
• Lifespan: 40,000 hours
• Connector: PUMP: 3-pin | LED: 3-pin
• Fan:
• Model Name Fusion 120 ARGB fan (AH12012FM1)
• Fan Type: PWM Fan
• Bearing Type: Hydraulic Bearing
• LED Type: Addressable RGB
• Fan Speed: 600±200 ~ 2000±10% RPM
• Airflow: 57.93 CFM (max.)
• Air Pressure: 2.11 mm H₂O (max.)
• Fan Noise Level: 31.24 dB(A)
• Lifespan: 40,000 hours
• Connector: FAN: 4-pin PWM | LED: 3-pin
• Rated Voltage: FAN: DC 12 V | LED: DC 5 V
• Operation Voltage: FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
• Rated Current: FAN : ≤ 0.21 A | LED : ≤ 0.58 A
• Socket Compatibility CPU: Intel: LGA 115X / 1200 / 1700 / 20XX, AMD : AM3/AM4/AM5/TR4
• Dimensions: 12 x 12 x 2.5 cm

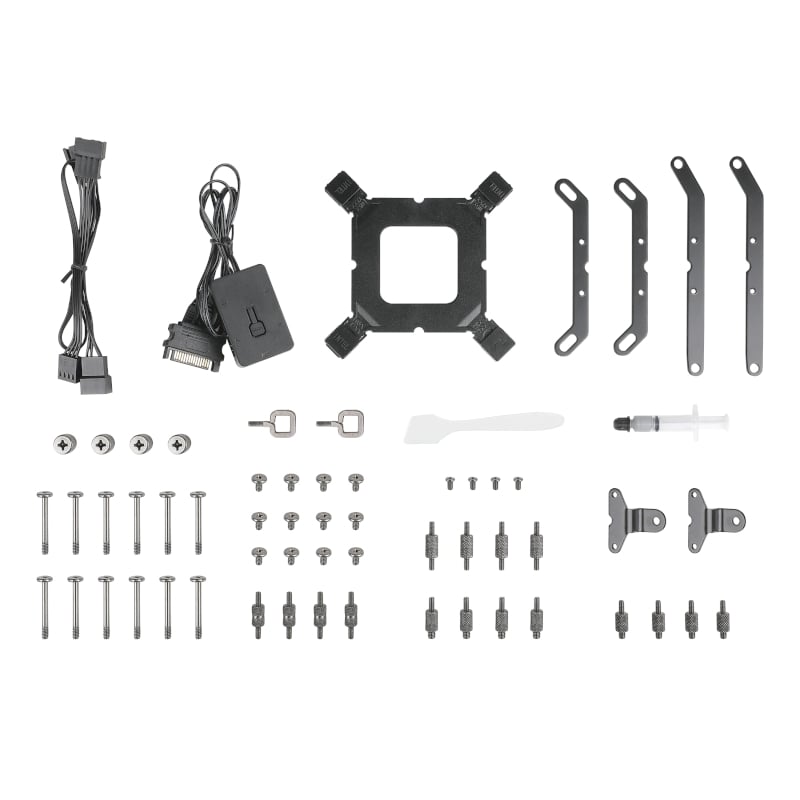

WHAT’S IN THE BOX:

• Antec VORTEX 360mm ARGB Liquid CPU Cooler x1
• CPU Mounting Kit x1
• Fan & Radiator Mounting Pack x1
• User Manual x1
